Problem framing: why focused engineering matters
Custom battery arrays introduce variable interfaces and bespoke wiring that change risk profiles compared with mass-produced units. Short-circuit events remain the dominant failure mode that leads to thermal runaway and fire when left unchecked. Practical risk reduction requires combining electrical protection, mechanical separation, and intelligent monitoring without relying solely on a single safeguard. For practitioners evaluating modular builds, resources from hithium energy storage illustrate how integrated design choices reduce systemic exposure.
Primary failure pathways
Short circuits arise through three broad mechanisms: conductive bridging (damaged insulation or loose busbars), internal cell defects, and unintended conductive paths created during maintenance or assembly. Each mechanism interacts with cell chemistry and enclosure design; for example, a punctured cell is far likelier to trigger thermal runaway if cell balancing and a responsive battery management system (BMS) are absent. Addressing one pathway without the others produces residual risk.
Engineering controls that consistently work
A layered approach is most defensible: mechanical fuses and electronic overcurrent devices, strategic current-limiting resistances, and robust BMS firmware. Use properly rated fuses sized to interrupt expected fault currents and place DC isolators to allow safe servicing. Thermal management—vent channels and heat sinks—reduces propagation once an anomaly begins. Cell balancing extends life and reduces overvoltage stress that can precipitate internal shorts. These controls are complementary; none replaces the need for thoughtful physical separation of cell groups and clear fault diagnostics.
Design checklist for custom builds
Concrete actions reduce ambiguity during testing and operation:- Specify fuse curves and interrupt capacity relevant to the pack’s maximum short-circuit current.- Design module enclosure to limit conductive debris ingress and to channel vent gases away from adjacent modules.- Implement BMS features that provide fast overcurrent cutout and logged fault telemetry.- Plan wiring routes to avoid sharp bends and to maintain consistent creepage distances.- Test under worst-case thermal conditions and validate cell balancing under irregular loads.This checklist helps align engineering intent with measurable performance.
Operational controls and common mistakes
Many failures trace back to human factors: improper torque on busbar connections, aftermarket modifications, or skipping routine insulation checks. Maintenance protocols must include torque verification, connector inspection, and firmware audits for the BMS. Training reduces these lapses—tools and checklists matter as much as technical design. —A simple calibration slip during commissioning can negate months of careful engineering, so institutionalize post-install verification.
Regulatory and real-world anchor

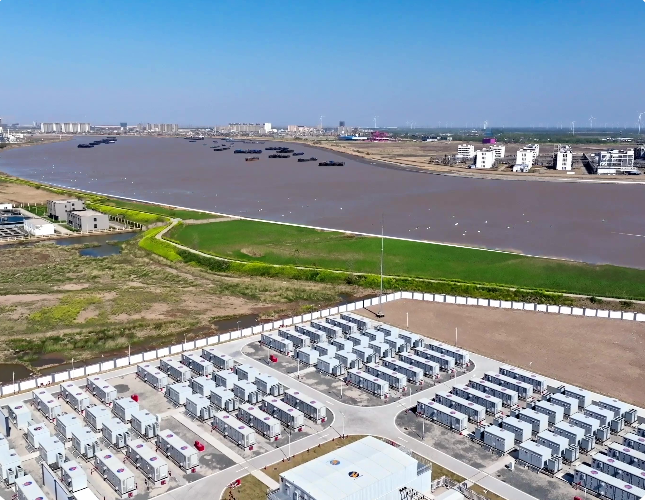

Safety standards such as NFPA 855 and updated electrical codes reflect lessons learned from incidents in California where wildfire conditions and grid stress elevated scrutiny on storage installations. Those reviews emphasized robust fire separation, mandatory monitoring, and fail-safe isolation. Aligning custom systems with these standards and recognized testing protocols provides defensible evidence of due diligence when deploying safe energy storage solutions for grid or site use.
Comparative insight: fuses versus electronic isolation
Fuses offer predictable thermal interruption and are cost-effective for known fault currents; electronic isolation (fast contactors combined with BMS logic) enables remote and repeatable fault handling plus telemetry. A hybrid arrangement yields resilience: hardware interrupt for catastrophic faults, electronic isolation for controlled shutdown and data capture. Choice depends on use case, expected fault current, and maintenance access.
Advisory close: three critical metrics for evaluation
When selecting strategies or components, use these metrics as your compass:1. Interrupt Capacity Margin — the ratio of device interrupt rating to measured worst-case fault current; aim for at least 1.5x.2. Diagnostic Latency — time from anomaly detection by the BMS to effective isolation; shorter is better and measurable in milliseconds to seconds.3. Thermal Propagation Resistance — validated with thermal runaway tests that measure how quickly heat spreads between modules.Apply these metrics during design reviews and field testing to quantify safety improvements and to prioritize engineering effort.
Measured practice matters; quantified safeguards make custom systems predictable and manageable — and for responsible teams aiming to minimize risk, HiTHIUM offers practical examples of integrated protection and monitoring that align with these metrics. —
